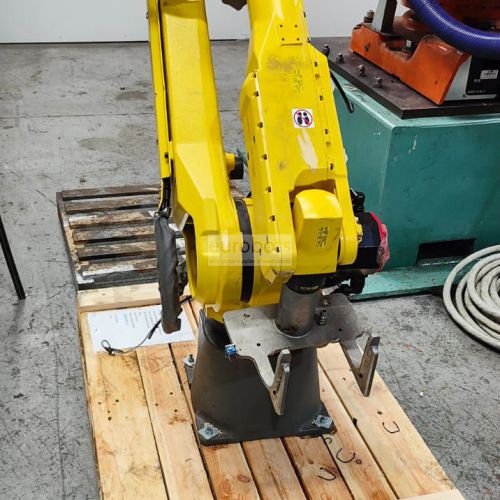

Fanúc M-20iA/35M

Awaiting more stock

Information
Specifications

The M-20 series of Fanuc arm and wrist hollow design specialized in multi-purpose work, this series is characterized by its useful load capacity, arm reach and speed. can handle up to a load of 35 kg with optimal performance, ideal for handling applications of different materials, They have a shelf on the back of the arm that provides easy installation of the peripheral equipment.

The M-20iA / 35M 6-axis industrial robot with capacity to handle heavy loads, large clamps and work pieces. It offers versatility and high inertial performance, has a hollow wrist design that provides greater cable protection, easy maintenance and a cost-effective system.

R-30iB control system

Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.

Main specifications

Maximum Load of Robot: 35 kg
Number of axis: 6
Maximum horizontal reach: 1813 mm
Repeatability: ± 0.03mm
Controller: R30iB

Motion range (°)

Axis J1: 370°
Axis J2: 260°
Axis J3: 461,0°
Axis J4: 400°
Axis J5: 280°
Axis J6: 900°

Maximum speed (°/s)

Axis J1: 180°/s
Axis J2: 180°/s
Axis J3: 200°/s
Axis J4: 350°/s
Axis J5: 350°/s
Axis J6: 400°/s

Robot applications

Handling parts
Loading and unloading

Applications

Báo chí chăm sóc , Palletising , Bốc xếp các bộ phận , Gia công , Xử lý các bộ phận , Đo đạc , Lắp ráp các bộ phận , Keo - Liên kết kết dính , Education
